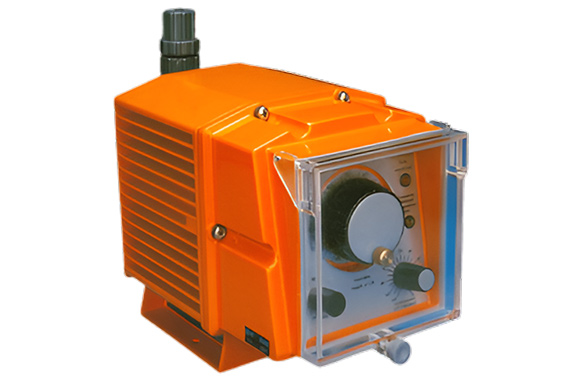

B - Series
Heidelberg Prominent make Electronic Dosing pump- BRAND - Heidelberg Prominent
- TYPE - Electronic Dosing Pump
- CAPACITY - 0 TO 54.6 L/Hr
- Max Frequency Strokes Hour - 6600
- Available MOC - PP/PVC/SS/TEFLON
Features:
The Developan diaphragm of this pump is made of high quality fabric reinforced EPDM with moulded in steel core and coating of teflon on the media contacted side. The housings are made of die-cast Aluminium with chemical resistant coating.
B pumps have the facility for accepting pulse or 0/4-20mA signals for automatic control of dosing.These pumps also have the in built feature for low level indication in the Dosing Tank through a tank level switch.

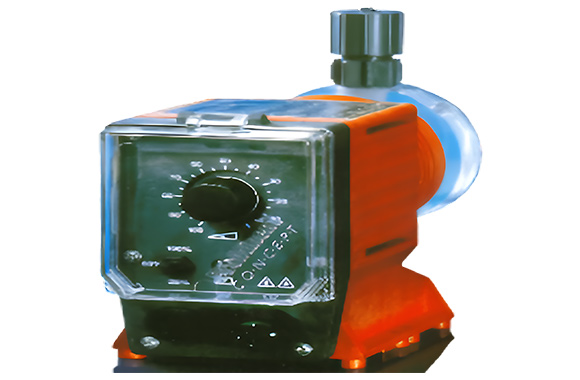

CONCEPT - Series
Heidelberg Prominent Make Electronic Dosing Pump- BRAND - Heidelberg Prominent
- TYPE - Electronic Dosing Pump
- CAPACITY - 0 TO 24 L/Hr
- Max Frequency Strokes Hour - 5625
- Available MOC - PP/PVC/SS/TEFLON
Features:
ProMinent Electronic Dosing Pumps type Concept CC3 and B are driven by a solenoid and controlled electronically. The only moving part in the pump is the solenoid armature which has a maximum movement of 1.25 mm only and this makes the pumps virtually wear and tear free.
The output can also be controlled automatically through pulse signals or 4-20 mA signal

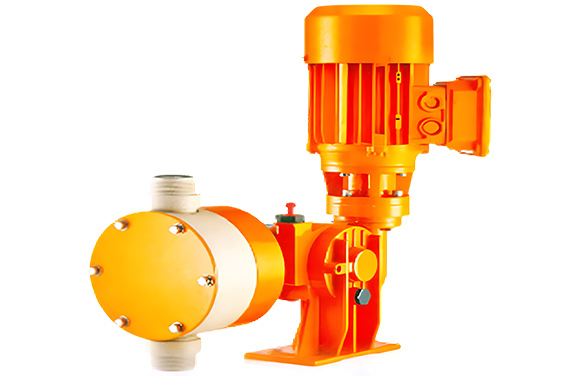

PLASMA - Series
Heidelberg Prominent Make Motorised Dosing Pump- BRAND - Heidelberg Prominent
- TYPE - Motorised Dosing Pump
- CAPACITY - upto 400 L/Hr
- Max Frequency Strokes Hour - 9000
- Available MOC - PP/PVC/SS/TEFLON
Features:
ProMinent Plasma pumps are motor driven diaphragm type pumps. These pumps are compact, consume low power, best quality, process reliablility and proven solution for any metering requirement with reproducibility accuracy +/-2%.
the PTFE diaphragm of the pump is made of high quality fabric reinformed EPDM moulded in steel core and the media contacted side is coated with TEFLON.

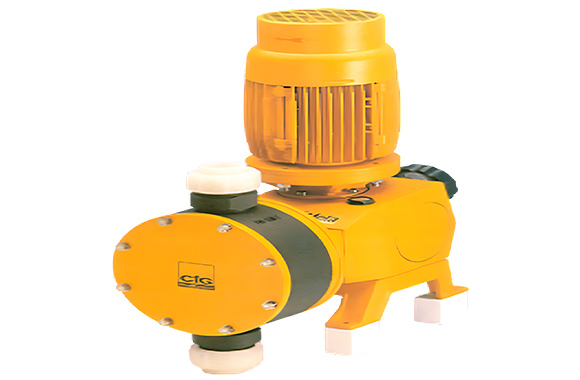

META - Series
Heidelberg Prominent Make Motorised Dosing Pump- BRAND - Heidelberg Prominent
- TYPE - Motorised Dosing Pump
- CAPACITY - upto 1000 L/Hr
- Max Frequency Strokes Hour - 11520
- Available MOC - PP/PVC/SS/TEFLON
Features:
ProMinent Meta Motorised pumps are compact, consume less power, best quality , with process reliability , robust, and proven solution for any metering requirement with reproducibility accuracy +/-2%.
These pumps can be offered with multiple heads and common headers with Duplex, Triplex and Quadruplex upto - 4000L/Hr.

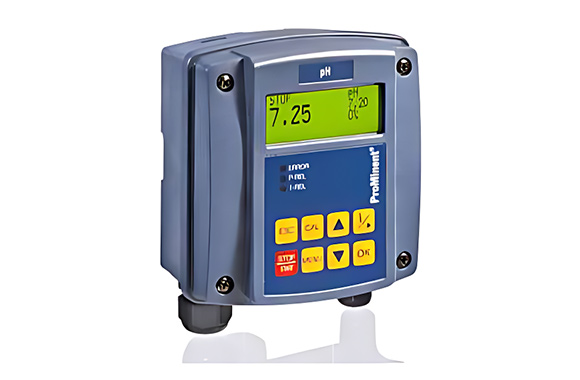

Controller Dulcometer Compact
- BRAND - Heidelberg Prominent
- TYPE - D1Cb/D1Cc
- Measuring Range - PH/ORP/CHLORINE/conductive and inductive conductivity
- Accuracy - 0.5% of the upper range value
- Temperature Compensation Range - 0 to 120*C, Chlorine - 1 to 45*C
- Voltage Supply - 100 to 2305V, 50/60 Hz, 5 W
- Control Monodirectional PID control with selectable control direction
Features:
As a controller in water analysis, the DULCOMETER Compact is the correct controller for control tasks that require only a 1-way control.
The controller DULCOMETER D1Cb/D1Cc can be used for control tasks in potable water treatment, wastewater treatment and many other areas
