Bonfiglioli Gear Box / Gear Motor

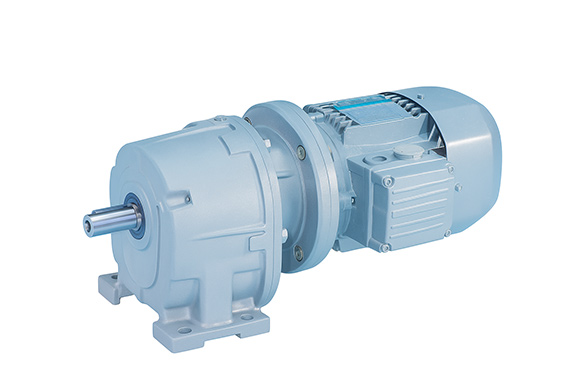

AS series

In-Line Helical Gearmotors
Performance and Price Effectiveness Alongside Tradition

The dependable and performing solution for all in-line drive applications featuring unsurpassed Quality to Price ratio. Foot or flange mounting are possible in any mounting position, making the installation easier than ever.

  • Integral motors and brake motors – M series / ME series
  • IEC-normalized motors and brake motors – BN series / BE series
  • Single and dual speed motors
  • DC and AC supply
  • Faster brake engage/disengage through electronically
  • Controlled AC/DC rectifier type SB, NBR, SBR (options)
  • Brake Microswitch
  • Thermistors and thermostates sensors
  • Separate supply forced ventilation
  • Line driver and push-pull incremental encoder
  • Additional input cable entry
  • Plug & play connectors

Type Torque [Nm]
AS 16 50
AS 20 100
AS 25 200
AS 30 350
AS 35 530
AS 45 800
AS 55 1350
AS 60 2300
AS 80 4200
AS 90 6800
AS 100 12000
  • Transmission Torque : 25 … 12000 Nm
  • Mechanical Rating (n₁ = 1400 min⁻¹) : Up to 132kW
  • Gear ratios : i₁ = 4.34 … 202.1
Output configurations
  • Solid keyed shaft
Input configurations
  • IEC motor mounting provision
  • Solid input shaft

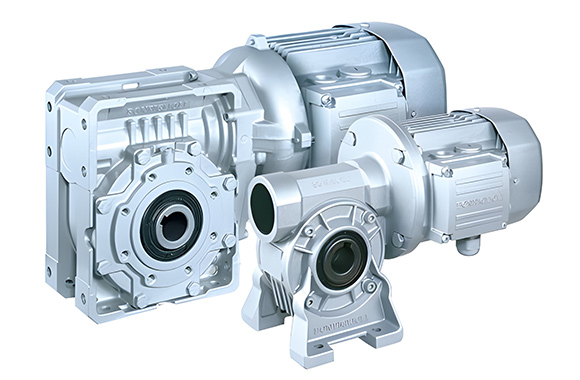

VF & W series

Worm Gears
A smart design enhanced by latest materials technology and advanced manufacturing.

Wormgears of the VF and W series are milestones for the industry worldwide. They succeeded in combining uncompromising quality with state-of-the-art technology and renown price effectiveness. Absolute flexibility is given by the wide choice of several mounting options, shaft configurations, and motor interfaces, all offered as standard. The helical-worm and the double-worm versions, with or without the torque limiter, also add up, creating a highly versatile drive system.

  • Integral motors and brake motors – M series / ME series
  • IEC-normalized motors and brake motors – BN series / BE series
  • Single and dual speed motors
  • DC and AC supply
  • Faster brake engage/disengage through electronically controlled AC/DC rectifier type SB, NBR, SBR (options)
  • Brake Microswitch
  • Thermistors and thermostates sensors
  • Separate supply forced ventilation
  • Line driver and push-pull incremental encoder
  • Additional input cable entry
  • Plug & play connectors

Type Torque [Nm]
VF 27 13
VF 30 24
VF 44 55
VF 49 88
W 63 190
W 75 320
W 86 440
W 110 830
VF 130 1500
VF 150 2000
VF 185 3600
VF 210 5000
VF 250 7100
VF 130 / VF 250 9200
  • Torque Range : 13 ... 9200 Nm
  • Mechanical Rating (n₁ = 1400 min⁻¹) : 0.04 ... 75 kW
  • Gear ratios : 7 ... 10000
Output configurations
  • Keyed hollow shaft
  • Plug-in solid output shaft
  • Torque limiter as an option
Input configurations
  • IEC-normalized motor adaptors
  • Solid input shaft
Main gear options
  • Reduced backlash
  • Double ended input shaft at non-drive end
  • Viton oil seals
ATEX compliance
  • VF30 ... VF49
  • W63 ... W110

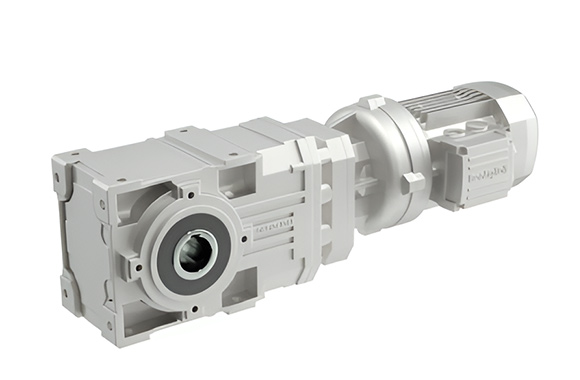

A series

Helical Bevel Gearmotors
When Efficiency and Versatility Meet Each Other.

The A series is the first product to prove equally good in regard to efficiency and versatility within a highly competitive context, both performance- and price-wise.

  • Integral motors and brake motors – M series / ME series
  • IEC-normalized motors and brake motors – BN series / BE series
  • Single and dual speed motors
  • DC and AC supply
  • Faster brake engage/disengage through electronically controlled system
  • Controlled AC/DC rectifier type SB, NBR, SBR (options)
  • Brake Microswitch
  • Thermistors and thermostates sensors
  • Separate supply forced ventilation
  • Line driver and push-pull incremental encoder
  • Additional input cable entry
  • Plug & play connectors

Type Torque [Nm]
A 05 100
A 10 150
A 20 250
A 30 410
A 35 600
A 41 850
A 50 1500
A 55 2000
A 60 2800
A 70 5000
A 80 8000
A 90 14000
  • Torque Range : 100 … 14000 Nm
  • Mechanical rating (n₁ = 1400 min⁻¹) : 0.22 … 150 kW
  • Gear Ratios : 5.4 … 1715
Output
  • Foot and shaft mount – two bore options per size
  • Keyless shrink disc fitting
  • Metric or Inch series solid output shaft
  • Taper bushings matching more shaft diameters
  • Splined hollow shaft to DIN 5480
Input
  • IEC and NEMA motor adaptors
  • Servomotor adaptors
  • Metric or Inch series solid input shaft
ATEX Compliance
  • A10 … A60

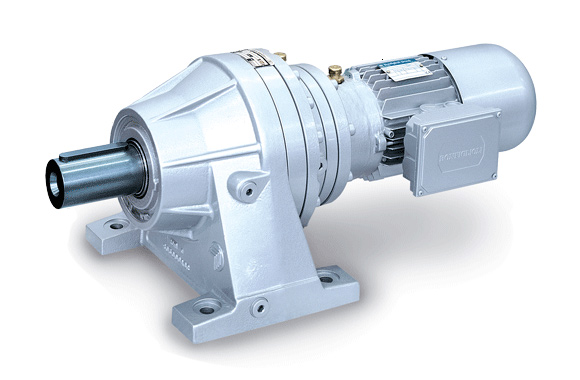

300 Series

Planetary Drives
A powerful solution to heavy duty drive needs.

Compact, and yet extremely powerful, are the units of the 300 series. Their planetary drive train makes them the ideal choice for all the severe duty applications where shock loading and impacts are more rule than the exception. The product configuration is highly versatile, due to largely modular option options as far as the mounting, the gear layout, the output shaft and the motor interface. All features are available for each of the 22 closely spaced frame sizes, spanning over the 1250 - 41,60,000 Nm torque range. Finding the perfect match to any drive problem is therefore more than a wish, it is something users can safely rely on - always.

  • Compact motors and brake motors M series
  • IEC motors and brake motors BN series
  • Single and dual speed motors
  • DC and AC supply
  • Faster brake engage/disengage through electronically controlled rectifier
  • Controlled AC/DC rectifier type SB, NB (optional)
  • Brake microswitch
  • Thermistors and thermostates sensors
  • Independent forced cooling
  • Line driver and push-pull incremental encoder
  • Torque Range : 1250 … 41,60,000 Nm
  • Mechanical rating (n₁ = 1500 min⁻¹) : up to 450 kW
  • Gear Ratios : 3.4 … 5040
Gear unit versions
  • In line
  • Right angle (with Gleason bevel gear set)
  • Combination of planetary & worm gear
  • Combination of planetary & bevel helical gear
Output
  • Foot and flange mounted
  • Output shaft: keyed solid, splined, splined hollow,
  • hollow shaft with shrink disc
  • hollow shaft with double keyway
Input
  • IEC and NEMA motor adaptors
  • Solid input shaft with or without fan cooling - inch or metric dims.
  • Hydraulic motor adaptors
ATEX compliance
  • 300 … 325
Main Gear Options
  • Backstop
  • Reinforced bearings for higher overhung load capacity
  • Reduced backlash
  • Torque arm
  • Independent cooling system
  • Taconite Seals

Type Torque [Nm]
300 1250
301 2460
303 2970
304 3960
305 5800
306 10840
307 15680
308 23240
310 34120
311 48330
313 57970
314 84000
315 105000
316 138820
317 208110
318 280580
319 476410
321 655740
323 890310
325 1286700
327 2880000
329 4160000

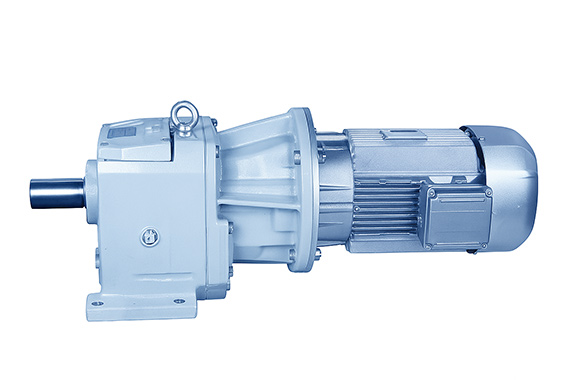

C series

In-Line Helical Gearmotors
When Customers benefit from the know-how developed over the years.

Top torque density, product variety, extremely wide speed choice, great compactness and price effectiveness make the C series the unparalleled line of helical gearmotors and speed reducers.

  • Integral motors and brake motors – M series / ME series
  • IEC-normalized motors and brake motors – BN series / BE series
  • Single and dual speed motors
  • DC and AC supply
  • Faster brake engage/disengage through electronically
  • Controlled AC/DC rectifier type SB, NBR, SBR (options)
  • Brake Microswitch
  • Thermistors and thermostates sensors
  • Separate supply forced ventilation
  • Line driver and push-pull incremental encoder
  • Additional input cable entry
  • Plug & play connectors

Type Torque [Nm]
C 12 100
C 22 200
C 32 300
C 36 450
C 41 600
C 51 1000
C 61 1600
C 70 2300
C 80 4000
C 90 7200
C 100 12000
  • Torque Range : 37 … 12000 Nm
  • Mechanical Rating (n₁ = 1400 min⁻¹) : 0.08 … 213 kW
  • Gear Ratios : 2.6 … 1481
Output
  • Foot and Flange Mount
  • Metric or Inch Series Solid Output Shaft
Input
  • IEC and NEMA Motor Adaptors
  • Metric or Inch Series Solid Input Shaft
  • Servo Motor Adaptors
Main Gear Options
  • Reduced Backlash
  • Viton Oil Seals
ATEX Compliance
  • C11 … C61

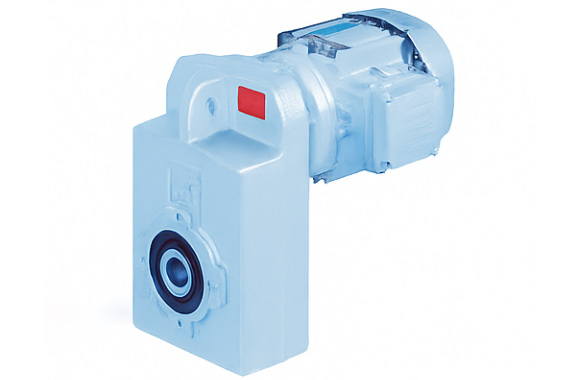

F series

Shaft Mounted Gearmotors
Ruggedness and Effectiveness to the State of the Art.

No better, easier and neater installation than with a shaft mounted unit of the F series.

Lightweight and performing, an F unit is the dependable drive for all the material handling applications.

  • Integral motors and brake motors – M series / ME series
  • IEC-normalized motors and brake motors – BN series / BE series
  • Single and dual speed motors
  • DC and AC supply
  • Faster brake engage/disengage through electronically
  • Controlled AC/DC rectifier type SB, NBR, SBR (options)
  • Brake Microswitch
  • Thermistors and thermostates sensors
  • Separate supply forced ventilation
  • Line driver and push-pull incremental encoder
  • Additional input cable entry
  • Plug & play connectors

Type Torque [Nm]
F 10 140
F 20 250
F 25 400
F 31 600
F 41 1100
F 51 1800
F 60 2900
F 70 5000
F 80 8000
F 90 14000
  • Transmission Torque : 25 … 12000 Nm
  • Mechanical Rating (n₁ = 1400 min⁻¹) : Up to 132kW
  • Gear ratios : i₁ = 4.34 … 202.1
Output configurations
  • Solid keyed shaft
Input configurations
  • IEC motor mounting provision
  • Solid input shaft
