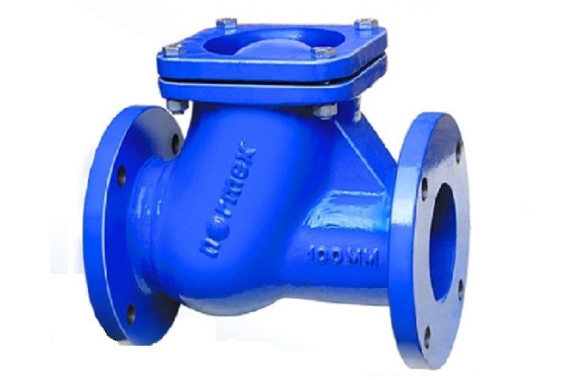

Model B - 01
Ball Check Valve (Flanged)- BRAND - Normex
- TYPE - Ball Type Check Valve
- SIZE - 25 MM TO 350 MM
- Pressure Rating - PN6/PN10/PN16
- MOC - CI/SS/CS
Features:
New generation valve with unique and non-conventional Ball Check design, Suitable for a very wide range of applications like slurry,sewage, paper, chemical, water supply, agriculture, muddy water, slurry, paper stock, viscous liquid and clear water.

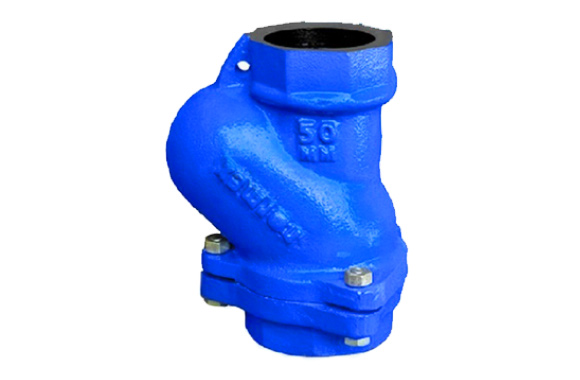

Model B - 06
Ball Check Valve (Threaded)- BRAND - Normex
- TYPE - Ball Type Check Valve
- SIZE - 25 MM TO 100 MM
- Pressure Rating - PN6
- MOC - CI/SS/CS
Features:
This valve is offered in both end-threaded design.Operates silently upto 80oC, Highly sensible to arrest flow with perfect sealing.This valve has a quality for withstanding consistent performance and longer life.Installation can be vertically or horizontally

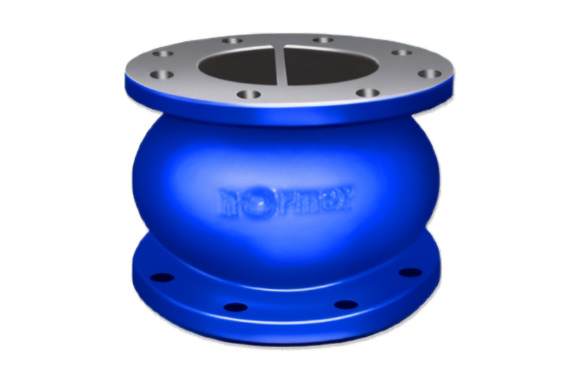

Model H - 01
Silent Check Valve- BRAND - Normex
- TYPE - Silent Check Valve
- SIZE - 40 MM TO 400 MM
- Pressure Rating - PN6/PN10/PN16
- MOC - CI/SS/CS
Features:
This check valve is offered with inside lining of Rubber/FRP,The selection of elostemer can be offered depending on chemicals/abrasives handled.A Foating Reinforced rubber coated ball is used instead of hinge-pindisc.

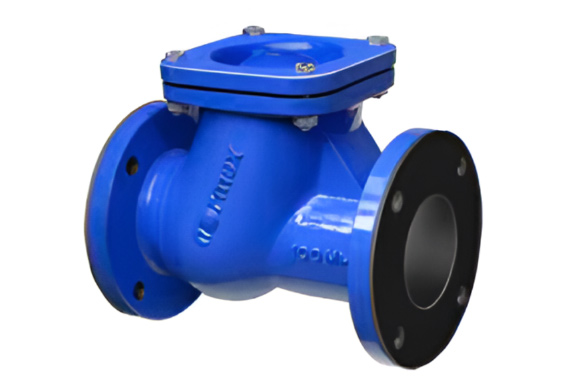

Model B - 02
Rubber Lined/FRP Lined Ball Check Valve (Flanged)- BRAND - Normex
- TYPE - Rubber Lined/FRP Lined Ball Check Valve
- SIZE - 25 MM TO 350 MM
- Pressure Rating - PN6/PN10/PN16
- MOC - CI/SS/CS
Features:
This valve is offered in both end-threaded design.Operates silently upto 80oC, Highly sensible to arrest flow with perfect sealing.This valve has a quality for withstanding consistent performance and longer life.Installation can be vertically or horizontally

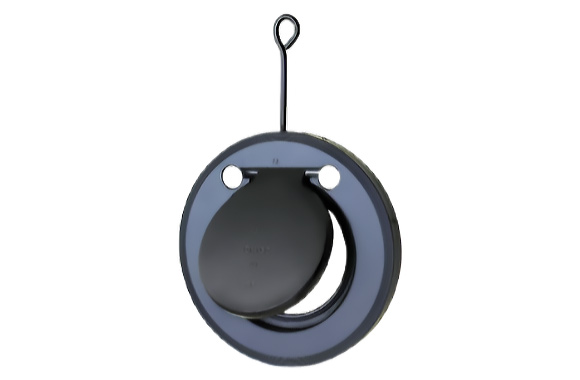

WCV / WSP
Wafer Check Valves Model- BRAND - Normex
- TYPE - Wafer Check Valve
- SIZE - 25 MM TO 600 MM
- Pressure Rating - PN10 & PN16 (KPa)
- MOC - CI/SS/CS
Features:
100% leak proof,Short length - less space required, Light weight.Lower pressure drop across the valve, Low opening & closing pressures, Wide range of materials, temperature & pressure ratings, Can be mounted horizontally & vertically.

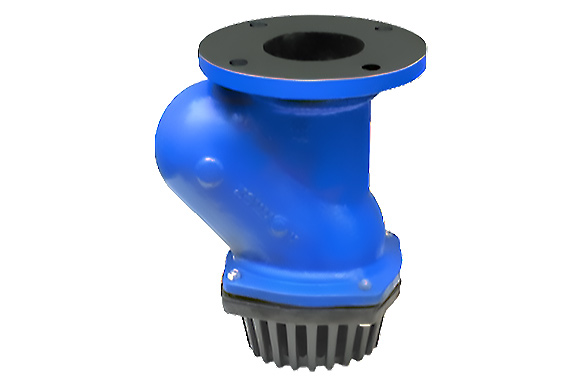

Model B - 05 (N)
Ball Foot Valve (Flanged)- BRAND - Normex
- TYPE - Ball Foot Valve
- SIZE - 50 MM TO 200 MM
- Pressure Rating - PN6/PN10/PN16
- MOC - CI/SS/CS
Features:
Ball foot valve(Flanged) : Model B-05(N) These flanged foot valves are available from 50mm to 200mm sizes with 6.0 kg/cm2 working pressure.These are the check valves converted to foot valves by installing strainer to the inlet side. They are generally recommended for sizes of 250mm,300mm & 350mm NB. However,smaller sizes from 25mm TO 200mm are available & can withstand pressures of 16/10 kg/cm2 depending on size.
