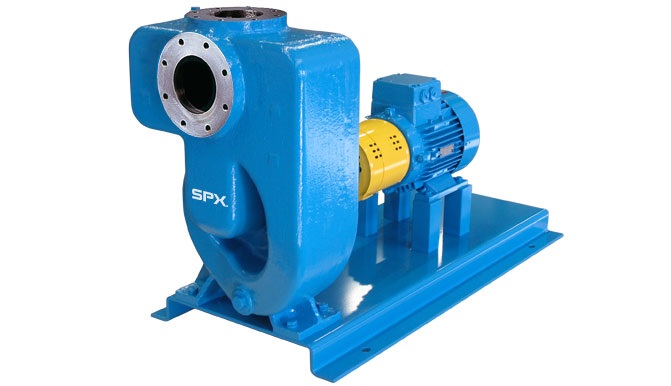

FreFlow, Self-priming Single Stage Centrifugal Pump

fre-big

Self-priming centrifugal pumps

Suitable for

Contaminated liquids, as well liquids containing air or gas, for sumps, gullies and many other applications where a suction lift is required

Features

  • Excellent self-priming ability
  • No non-return valve required in the inlet
  • Single unbalanced/balanced seals to EN 12756 (DIN 24960)
  • Mechanical seal with dry-running protection through oil bath quench
  • Ideal for handling contaminated liquids
  • Easy maintenance – Back-Pull-Out principle
  • Flanges 32 and 40 threaded connection
  • Flange connection 50 and higher to ISO 7005 PN 16
  • Flange connection to ISO 7005 PN 20 (ANSI B16.5 150 lbs) optional
  • Greased for life roller bearings
  • Magnetic drive optional
  • Atex certification
Technical data
Casing: Cast iron Max. liquid temp: 95°C
Impeller: Cast iron, Bronze Max. pressure: 8000 kPa (8 bar)
Max. capacity: 100 m3/h Max. speed: 3 600 rpm
